pcsa_assembly_fixtures_

Bestückingsmallen

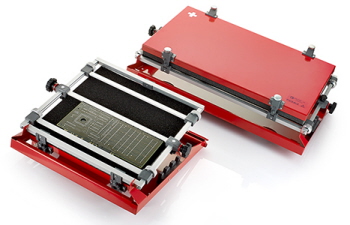

De bekende modellen "klapmallen"

  • printplaat bevestigen
  • componenten doorsteken
  • schuimplaat eroverheen vastmaken
  • omklappen; schuim houdt de onderdelen vast
  • draadeinden afknippen en solderen
!
IT7915599

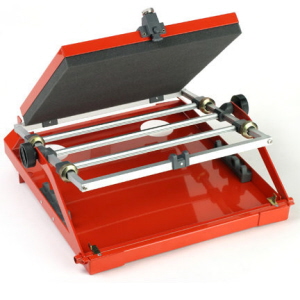

PCSA1

PCB Assembly fixture,

max. working dimension 270x220mm

IT7915601

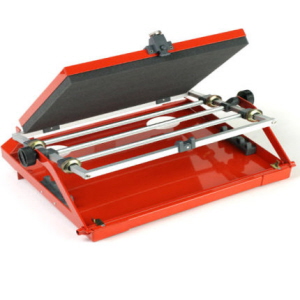

PCSA2

PCB Assembly fixture,

max. working dimension 500x220mm

IT7915605

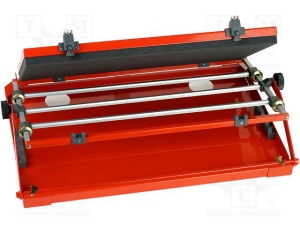

PCSA4

PCB Assembly fixture,

max. working dimension 500x330mm

IT7915610

BS-PCSS1

Additional sliding RAIL for PCSA1

IT7915612

BS-PCSS2-4

Additional sliding RAIL for PCSA2 or PCSA4
